XEBEC Brush™ Crosshole

Ideal for deburring, polishing and cutter mark removal on inner diameter and counterbored part

Applicable Equipment

The tool can be mounted on an equipment which can control the rotation speed. The tool must be rotated over 8000min-1.

  • Machining center
  • Combined lathe
  • Special machine
  • Robot
  • General purpose lathe with milling function
  • Drilling machine
  • Rotary tool
    (electric)
  • Rotary tool
    (pneumatic)
Lineup
Brush
(Color)

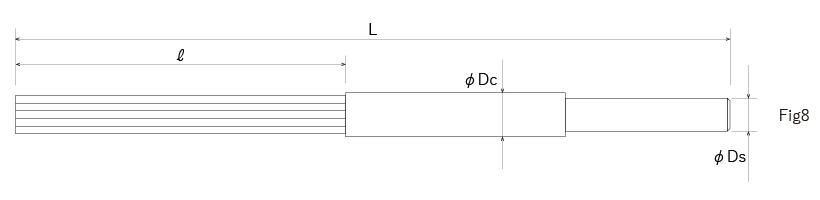

Product code Brush diameter
(mm)
Shaft diameter Dc
(mm)
Shaft diameter Ds
(mm)
Bristle lengthℓ
(mm)
Overall length L
(mm)
Maximum rotational speed
(min-1)
Target hole diameter
(mm)
Fig
A12
(Red)
CH-A12-1.5M φ1.5 φ2.5 φ3 50 120 20000 φ3.5~5 8
CH-A12-3M φ3 φ4 φ3 50 120 14000 φ5~8 8
CH-A12-3L φ3 φ4 φ4 50 170 12000 φ5~8 8
CH-A12-5M φ5 φ6 φ6 50 120 14000 φ8~ 10 8
CH-A12-5L φ5 φ6 φ6 50 170 12000 φ8~ 10 8
CH-A12-7M φ7 φ8 φ6 50 120 14000 φ10~20 8
CH-A12-7L φ7 φ8 φ8 50 170 12000 φ10~20 8
CH-A12-11M φ11 φ12 φ12 50 120 14000 φ14~20 8
CH-A12-11L φ11 φ12 φ12 50 170 12000 φ14~20 8
A33
(Blue)
CH-A33-3M φ3 φ4 φ3 60 130 14000 φ5~8 8
CH-A33-3L φ3 φ4 φ4 60 180 12000 φ5~8 8
CH-A33-5M φ5 φ6 φ6 60 130 14000 φ8~10 8
CH-A33-5L φ5 φ6 φ6 60 180 12000 φ8~10 8
CH-A33-7M φ7 φ8 φ6 60 130 14000 φ10~14 8
CH-A33-7L φ7 φ8 φ8 60 180 12000 φ10~14 8
CH-A33-11M φ11 φ12 φ12 60 130 14000 φ14~20 8
CH-A33-11L φ11 φ12 φ12 60 180 12000 φ14~20 8

* The brush size is approximate as the tip expands by rotating.
* CH-A12-3M/L, and CH-A12-7M/L are equipped with a protection tube.

Precautions for use

The Brush will break off when:
○ being machined beyond the maximum rotational speed
○ being used with a pneumatic tool
○ being rotated outside the cylinder (outside workpiece)

In the following cases, the Brush may break off,
○ off-center cross hole and angled cross hole
○ t-shaped hole: if the cross hole diameter is equal to or greater than the main bore diameter.
○ cross-shaped hole: if the cross hole diameter is more than 70% of the main bore diameter.
