Cylinder head (Oil gallery)

Before
Tool

Abrasive-impregnated nylon brush

Problem

Burrs were not removed completely. This caused the problem of quality inspection.

After
Tool

XEBEC Brush Cross hole Extra-Long (CH-A12-5F)

Result

Deburring and polishing quality stabilized.

Workpiece information
Industry

Automotive

Part name

Cylinder head (Oil gallery)

Material type

ADC12

Machining process

Drilling

Processing conditions
Tool

XEBEC Brush Cross hole Extra-Long (CH-A12-5F)

Details of processing

Cross hole deburring and internal polishing after drillng process

Spindle speed (min⁻¹)

7200

Table feed (mm/min)

2000

Depth of cut (mm)

Machining time (sec)

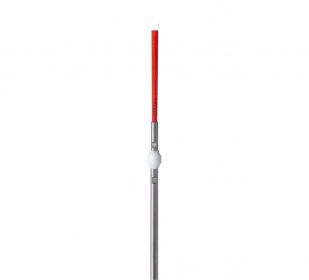

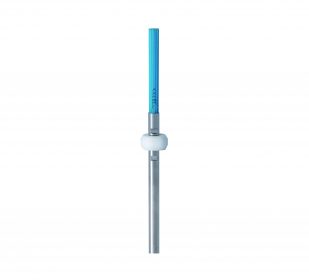

XEBEC Brush™ Cross hole

Ideal for deburring, polishing and cutter mark removal on the inner diameter and counterbored part

→Details
