Ideal for deburring on CNC lathes without milling capabilities
Machining center
Turn Mill Machine
Lathe (no live tooling)
Special machine
Robot
Rotary tool
Rotary tool

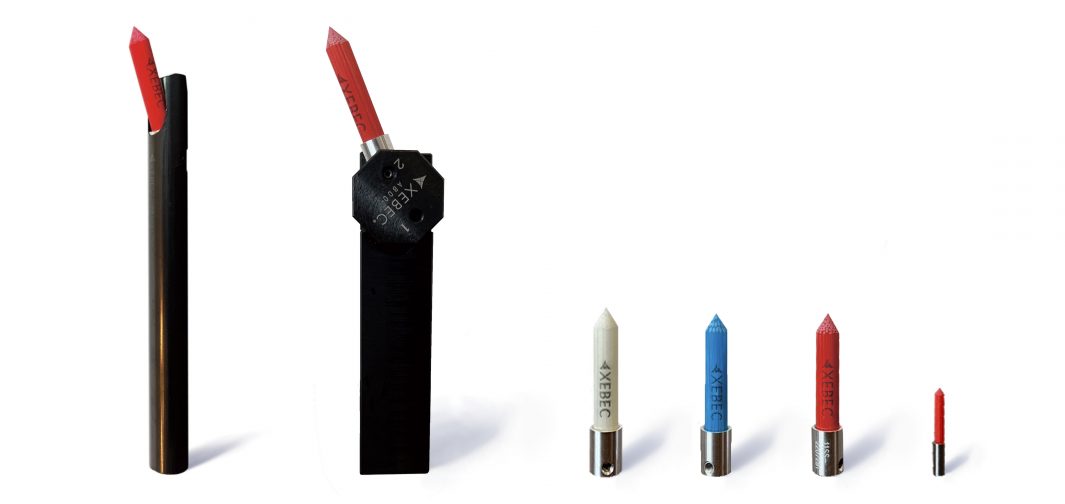

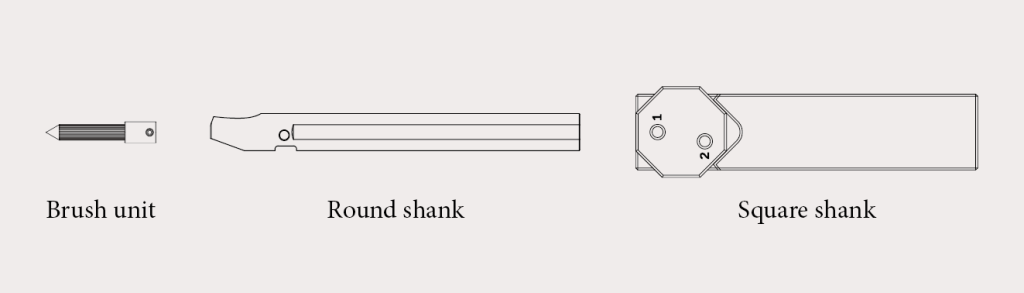

Brush and shank are sold separately. Assemble before use.
Brush(color) |
Product code |
Brush diameter(mm) |
Bristle lengthℓ(mm) |
Matching Sleeve |
Fig |
|
|
A11 (red)
|
A11-TB025 | Φ2.5 | 15 | TM-SH-06 | 1a | |
|
A11-TB06
|
Φ6
|
30
|
TM-SH-S2020 |
1a
|
||
| TM-SH-S2525 | ||||||
| TM-SH-12 | ||||||
|
A11-CB06M
|
Φ6
|
30
|
TM-SH-S2020 |
1b
|
||
| TM-SH-S2525 | ||||||
|
A21 (white)
|
A21-TB06
|
Φ6
|
30
|
TM-SH-S2020 |
1a
|
|
| TM-SH-S2525 | ||||||
| TM-SH-12 | ||||||
|
A21-CB06M
|
Φ6
|
30
|
TM-SH-S2020 |
1b
|
||
| TM-SH-S2525 | ||||||
|
A32 (blue)
|
A32-TB06
|
Φ6
|
30
|
TM-SH-S2020 |
1a
|
|
| TM-SH-S2525 | ||||||
| TM-SH-12 | ||||||
|
A32-CB06M
|
Φ6
|
30
|
TM-SH-S2020 |
1b
|
||
| TM-SH-S2525 | ||||||
Product code |
Length L(mm) |
Shank dia. Ds(mm) |
Bore size D(mm) |
Cutting dia.(mm) |
Max. side hole(mm) |
Matching brush |

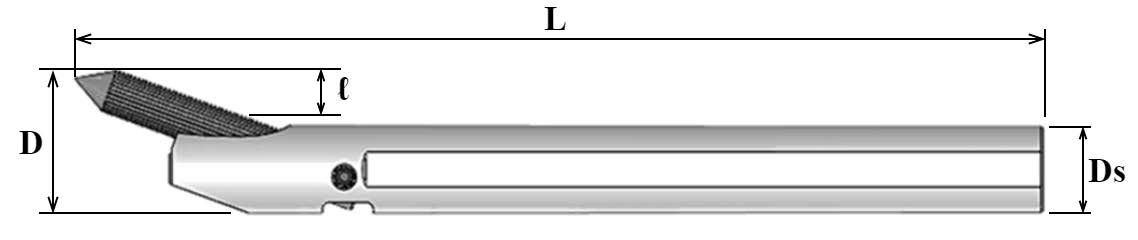

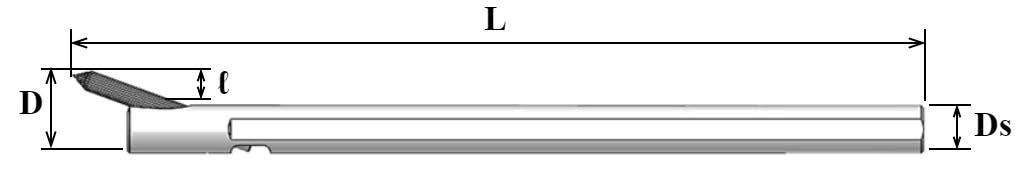

Fig. |
| TM-SH-06 | 107 | Φ6 | ≥ 11 | ≥ Φ12 | < Φ3 | A11-TB025 | 2 |
| TM-SH-12 | 133 | Φ12 | ≥ 20 | ≥ Φ21 | No limit | A11-TB06 | 2 |
| A21-TB06 | |||||||
| A32-TB06 |
Product code |
Length L(mm) |
Shank heightHs (mm) |
HeightH (mm) |
Shank widthWs (mm) |
WidthW (mm) |
Shank lengthLs (mm) |
Matching brush |

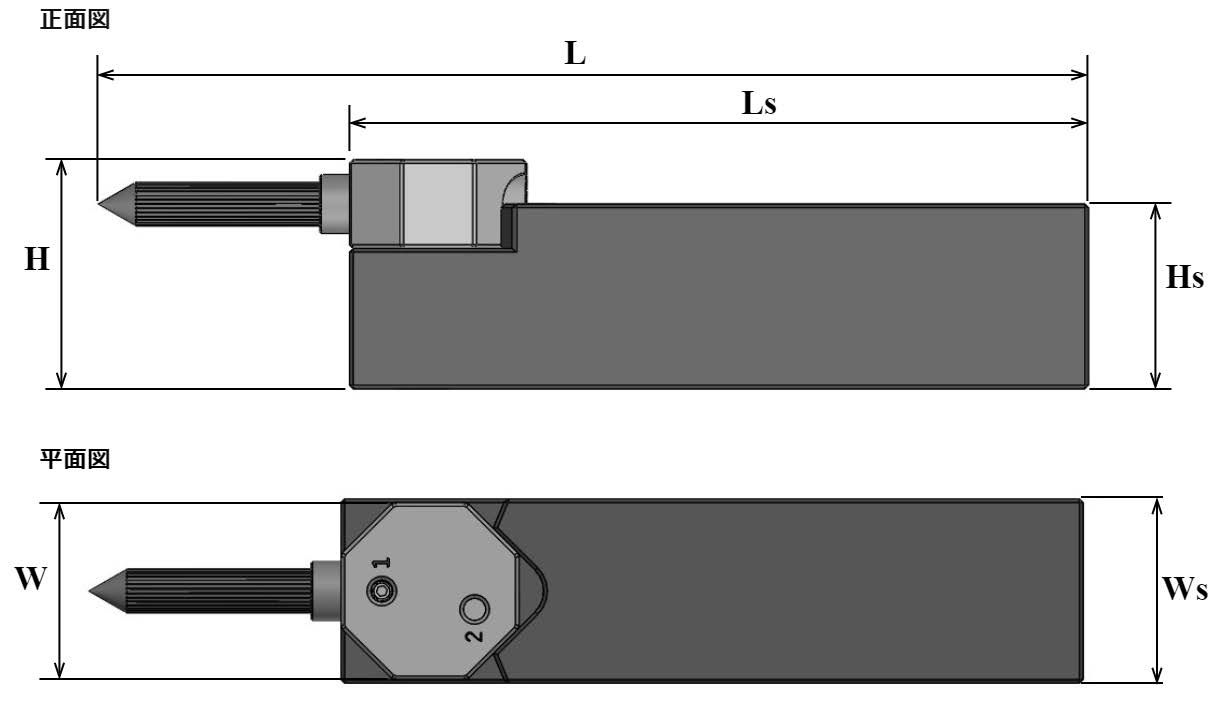

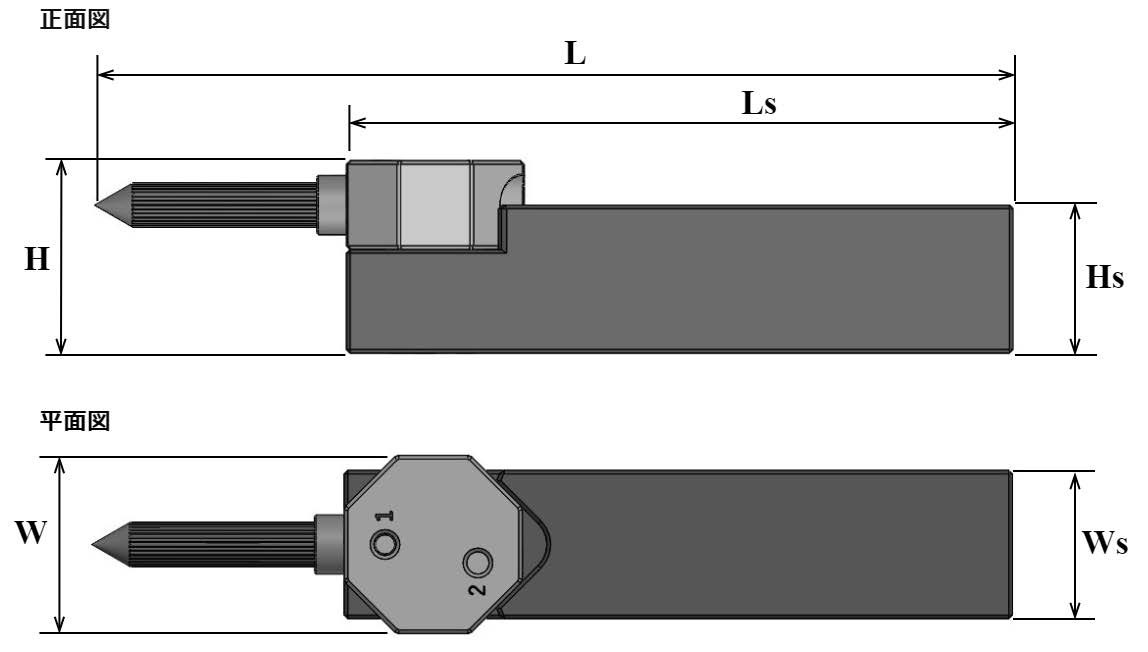

Fig. |
|
TM-SH-S2020
|
124
|
20
|
26
|
20
|
24
|
90
|
A11-TB06 |
3
|
| A21-TB06 | ||||||||
| A32-TB06 | ||||||||
| A11-CB06M | ||||||||
| A21-CB06M | ||||||||
| A32-CB06M | ||||||||
|
TM-SH-S2525
|
134
|
25
|
31
|
25
|
24
|
100
|
A11-TB06 |
3
|
| A21-TB06 | ||||||||
| A32-TB06 | ||||||||
| A11-CB06M | ||||||||
| A21-CB06M | ||||||||
| A32-CB06M |
