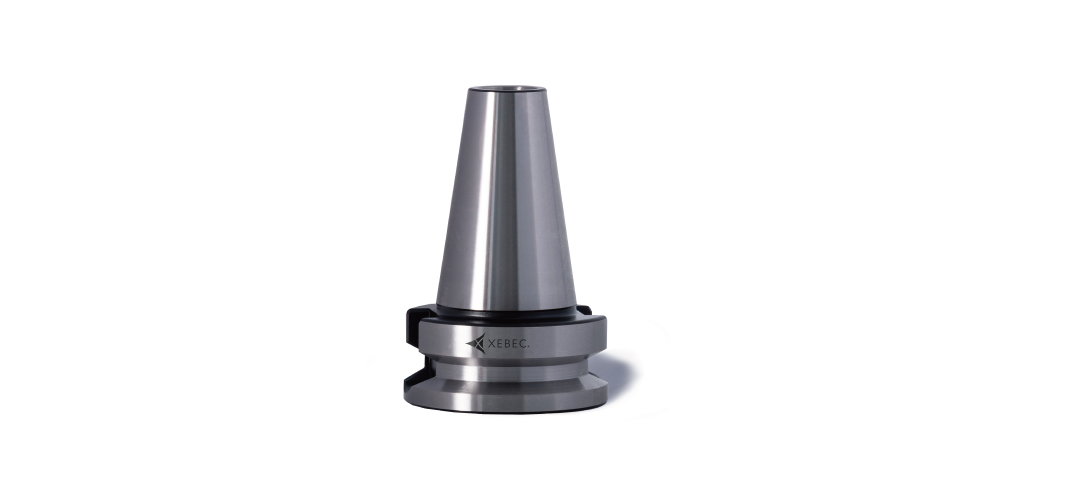

XEBEC Short BT Holder

Compact tool holder which length under the gage line is 23.5mm (inluding bush flange thickness 1.5mm).
Effective where tool length is limited

Applicable equipment

  • Machining center
  • Combined lathe
  • Special machine
  • Robot
  • General purpose lathe with milling function
  • Drilling machine
  • Rotary tool
    (electric)
  • Rotary tool
    (pneumatic)
Lineup
Product code Outermost diameter
(mm)
Target shank diameter
(mm)
SH-BT30 φ46 φ20

*This is designed exclusively for XEBEC products.
*Φ12 brush and Φ16 are available. Please contact for the detail.
