2020.10.02 XEBEC Path All Edges

XEBEC Path All Edges is a CNC solution that makes it possible to achieve a complete deburring of extremely complex edge profiles.

Details of the Workpiecd & Proocessing Conditions for Deburring

Before After
Material
Stainless Steel (SUS304)
Deburring Tool
XEBEC Back Burr Cutter (XC-78-A) + XEBEC Path All Edges
Rotational Speed (min-1)
4,500
Feed (mm/min)
1,350

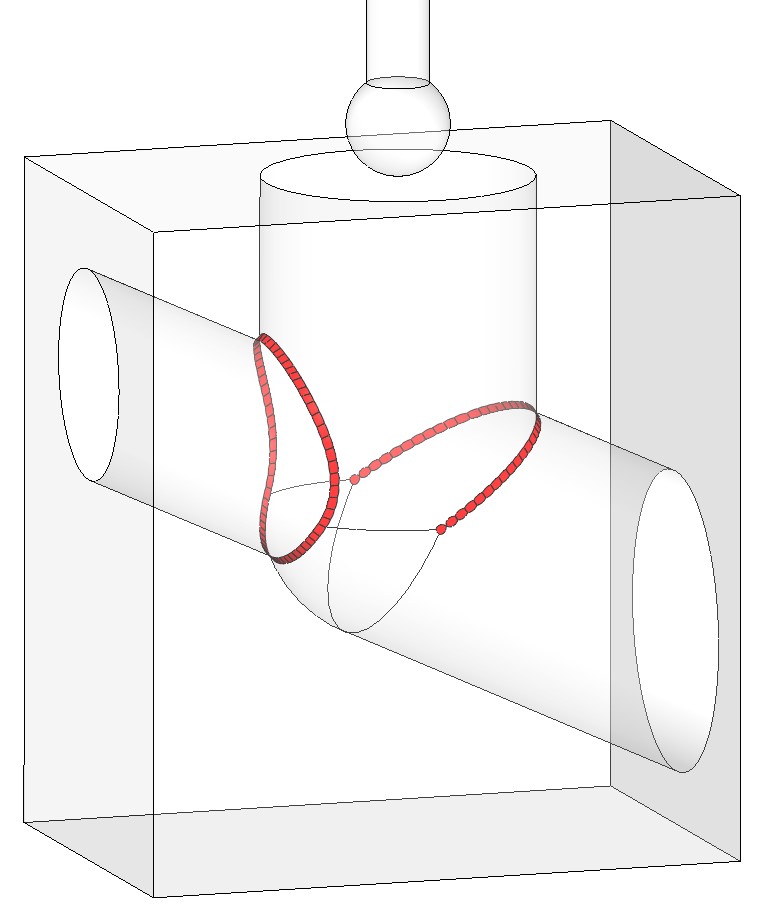

XEBEC Back Burr Cutter and Path is an innovative CNC crosshole deburring solution, which, in combination with the spherical deburring cutter and the customized Path (NC data set), enables high-precision deburring of 3D-curved cross holes. The Path is created specifically for the customer application, enabling deburring without secondary burr formation.

It is now possible for the Path (NC data set) to be generated for nearly all edge profiles, regardless of the complexity.

Followings are examples of edge profiles for which XEBEC Path All Edges have proven to be applicable.



XEBEC Path All Edges Deburring Example

Before After



Before  After

Material
Stainless Steel (SUS304)
Deburring Tool
XEBEC Back Burr Cutter (XC-48-A) + XEBEC Path All Edges
Rotational Speed (min-1)
7,200
Feed Rate (mm/min)
1,100



How to Apply for XEBEC Path All Edges

Please send details of the workpiece that needs to be deburred using the Inquiry From, including the machine type and the axial configuration (+X, +Y, and +Z directions). If possible, please attach a drawing of the workpiece.
