How to use

XEBEC Brush™ Surface End type

How to use

XEBEC Brush End type has high grinding power on the tip of a bristle.
Apply the tapered tip to polish flat surfaces.

Precautions for use

*If you apply brush to the edge part strongly, it might not be able to control the brush and the brush can be damaged.
*Use with an electric rotating tool that you can control its rotational speed.
*You cannot use with pneumatic tools as the brush might be damaged.

How to select

Brush color

Grinding power differs depending on brush color.

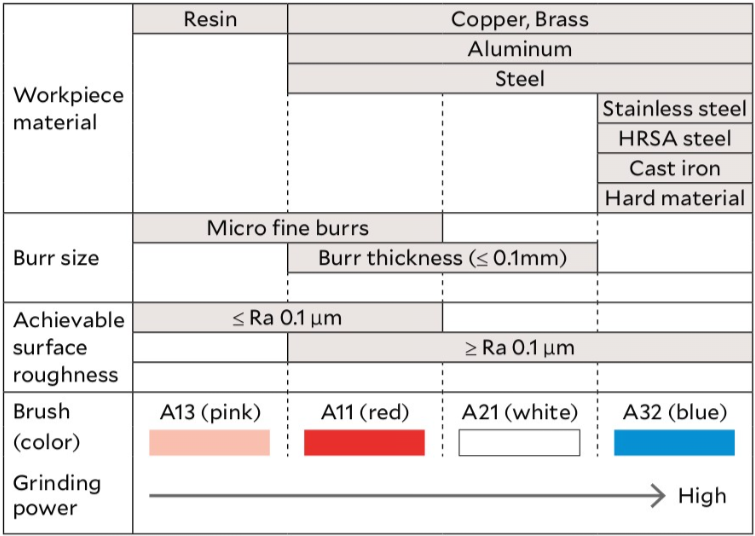

Refer to the chart below and select brush color based on the workpiece material and burr root thickness.

Processing conditions

As for rotational speed, please see the chart below and use within maximum rotational speed.

Brush (color) Product code Brush diameter (mm) Shank diameter (mm) Bristle length (mm) Overall length L(mm) Recommended rotational speed
(min-1)
Maximum rotational speed
(min-1)
A13
(Pink)
A13-EB01S φ1 φ3 15 52 7000~12000 15000
A13-EB015S φ1.5 φ3 15 52 7000~12000 15000
A13-EB02S φ2 φ3 15 52 7000~12000 15000
A13-EB025S φ2.5 φ3 15 52 7000~12000 15000
A13-EB03M φ3 φ3 30 67 4000 6000
A11
(Red)
A11-EB01S φ1 φ3 15 52 7000~12000 15000
A11-EB015S φ1.5 φ3 15 52 7000~12000 15000
A11-EB02S φ2 φ3 15 52 7000~12000 15000
A11-EB025S φ2.5 φ3 15 52 7000~12000 15000
A11-EB06M φ5 φ3 20 57 7000 12000
A21
(White)
A21-EB06M φ5 φ3 20 57 7000 12000

XEBEC Brush™ Surface End type

Ideal for cutter mark removal and polishing the sealed surface.

→Details
