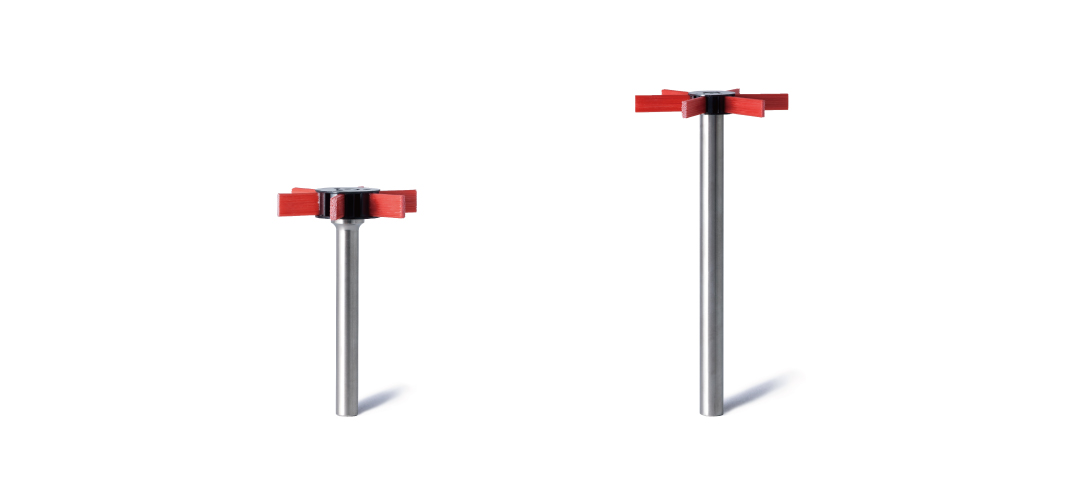

XEBEC Brush™ Wheel Type

Ideal for deburring an polishing on inner diameter, side surface and screw thread

Applicable equipment

  • Machining center
  • Combined lathe
  • Special machine
  • Robot
  • General purpose lathe with milling function
  • Drilling machine
  • Rotary tool
    (electric)
  • Rotary tool
    (pneumatic)
Tool composition

Brush main unit Shank are separate items.
Assemble a main unit to a shank before use

Brush main unit
Brush
(Color)
Product code Brush diameter
(mm)

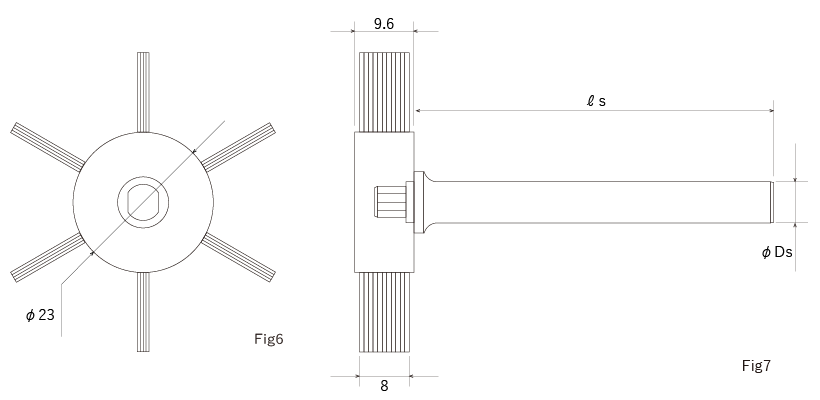

Number of bundles Matching shank Fig
A11
(Red)
W-A11-50 φ50 6 W-SH-M/L 6
W-A11-75 φ75 6
Shank
Product code Shaft diameter Ds
(mm)
Shank lengthℓs
(mm)
Fig
W-SH-M φ8 70 7
W-SH-L φ12 150 7
