SUS mold

Effects after installation

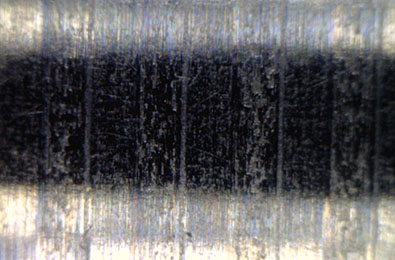

Before
Tool
Problem

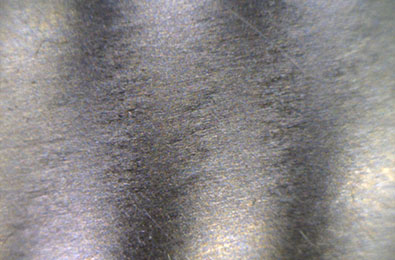

After
Tool

XEBEC Brush for Surface (A31-CB25M+A11-CB25M)

Effect

Surface roughness improved from Ra 15μm, Rz 48μm to Ra 0.12μm, Rz 0.98μm

Workpiece information
Industry

General machinery / others

Part name

SUS Mold

Material type

SUS304

Cutting process

Ball end mill processing

Processing conditions
Tool

XEBEC Brush for Surface (A31-CB25M+A11-CB25M)

Processing detail

Removal of cutter marks and polishing after ball-end milling process

Tool used:A31-CB25M、Rotation speed:5,000min-1、Feed:1,500mm/min、Depth of cut:0.3mm
and
Tool used:A11-CB25M、Rotation speed:5,000min-1、Feed:6,000mm/min、Depth of cut:0.3mm

Spindle Speed (min⁻¹)

5,000

Table Feed (mm/min)

1,500

Depth of cut (mm)

0.3

Machining time (sec)

XEBEC Brush™ Surface

Ideal for deburring, cutter mark removal and polishing on surface
