SUS mold

Effects after installation

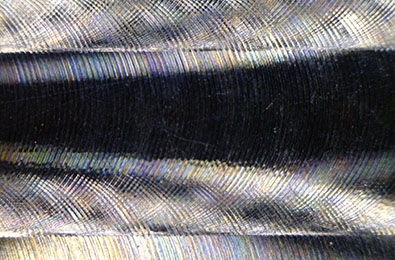

Before
Tool
Problem

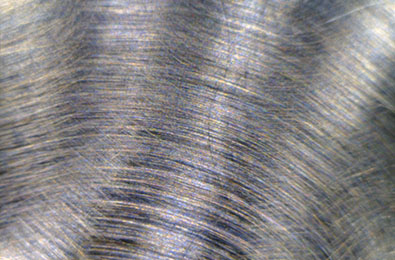

After
Tool

XEBEC Brush for Surface (A31-CB25M+A11-CB25M)

Effect

Surface roughness improved from Ra 0.21μm, Rz 1.56μm to Ra 0.03μm, Rz 0.35μm

Workpiece information
Industry

Mold

Part name

SUS Mold

Material type

SUS304

Cutting process

End mill processing

動画なし(webではない)
Processing conditions
Tool

XEBEC Brush for Surface (A31-CB25M+A11-CB25M)

Processing detail

Removal of cutter marks and polishing after end milling process
Tool used:A31-CB25M
Rotation speed:3,200min-1
Feed:1,500mm/min
Depth of cut:0.1mm and
Tool used:A11-CB25M
Rotation speed:4,000min-1
Feed:6,000mm/min
Depth of cut:0.3mm

Spindle Speed (min⁻¹)

3,200

Table Feed (mm/min)

1,500

Depth of cut (mm)

0.1

Machining time (sec)

81

XEBEC Brush™ Surface

Ideal for deburring, cutter mark removal and polishing on surface
