How to Assemble (Regular Type)

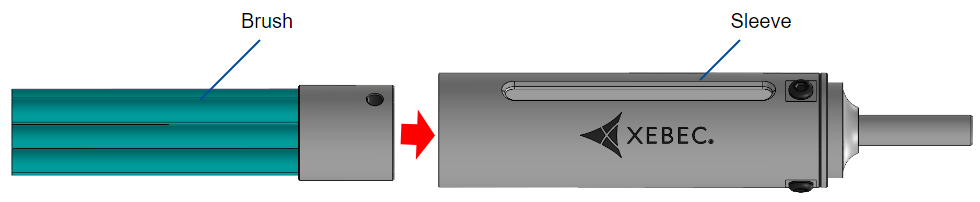

  1. Insert the Brush into the sleeve.

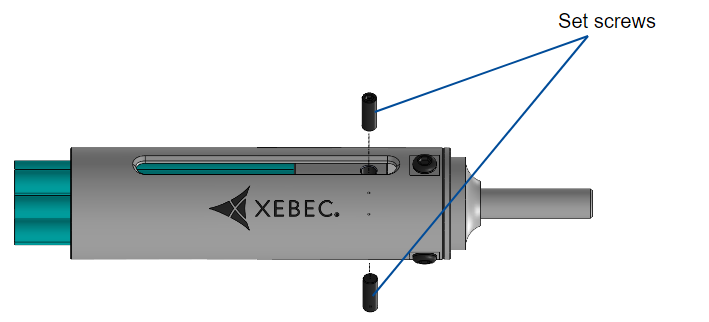

  2. Insert the set screws into the threaded holes.


  3. Adjust the Brush protruding length.

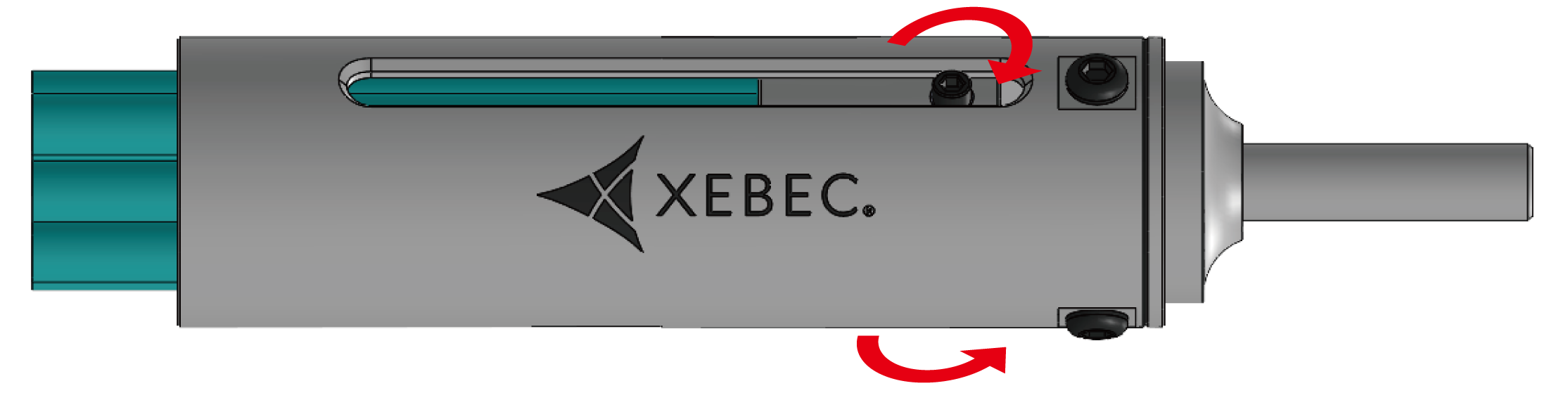

  4. Tighten the set screws to the specified torque.


    Product code

    Tightening torque(Nm)

    A**-CB06M

    0.36

    A**-CB15M

    0.63

    A**-CB25M

    1.5

    A**-CB40M

    1.5

    A**-CB60M

    3

    A**-CB100M

    5.2
XEBEC
