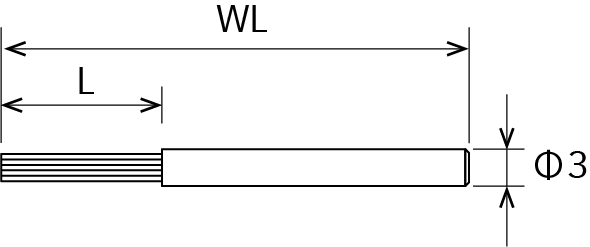

Product Specifications and Machining Parameters (End Type)
Brush color |
Product code |
Brush diameter (mm) |
Shank diameter (mm) |
Brush length L (mm) |
Overall length WL (mm) |
Recommended rotational Speed |
Maximum rotational Speed |
|---|---|---|---|---|---|---|---|
A13
|
A13-EB01S |
Φ1 |
Φ3 |
15 |
52 |
7000 - 12000 |
15000 |
A13-EB015S |
Φ1.5 |
Φ3 |
15 |
52 |
7000 - 12000 |
15000 |
|
A13-EB02S |
Φ2 |
Φ3 |
15 |
52 |
7000 - 12000 |
15000 |
|
A13-EB025S |
Φ2.5 |
Φ3 |
15 |
52 |
7000 - 12000 |
15000 |
|
A13-EB03M |
Φ3 |
Φ3 |
30 |
67 |
4000 |
6000 |
|
A11
|
A11-EB01S |
Φ1 |
Φ3 |
15 |
52 |
7000 - 12000 |
15000 |
A11-EB015S |
Φ1.5 |
Φ3 |
15 |
52 |
7000 - 12000 |
15000 |
|
A11-EB02S |
Φ2 |
Φ3 |
15 |
52 |
7000 - 12000 |
15000 |
|
A11-EB025S |
Φ2.5 |
Φ3 |
15 |
52 |
7000 - 12000 |
15000 |
*Brush diameter is approximate. Actual diameter varies as the tip expands with rotation.

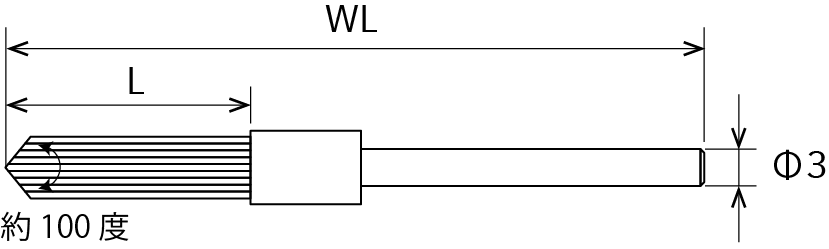

Brush color |
Product code |
Brush diameter (mm) |
Shank diameter (mm) |
Brush length L (mm) |
Overall length WL (mm) |
Recommended rotational speed (min-1) |
Maximum rotational speed (min-1) |
|---|---|---|---|---|---|---|---|
A11
|
A11-EB06M |
Φ5 |
Φ3 |
20 |
57 |
7000 |
12000 |
A21
|
A21-EB06M |
Φ5 |
Φ3 |
20 |
57 |
7000 |
12000 |
A32
|
A32-EB06M |
Φ5 |
Φ3 |
20 |
57 |
7000 |
12000 |
*Brush diameter is approximate. Actual diameter varies as the tip expands with rotation.
