How to Set up the Brush on the Machine
Applicable equipment
Machine type |
Regular Type |
End Type |
|---|---|---|
- |
||
|
|
||
|
|
|
|
|
|
||
|
|
|
How to Set up the Brush on the Machine (Regular Type)

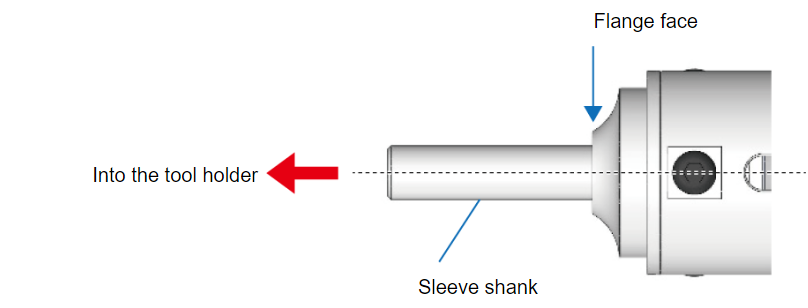

Insert the shank of the product completely into the tool holder, ensuring the flange face is pressed against the end surface of the tool holder.
 |
If the shank of this product is not inserted completely, it can break due to the vibrations caused during machining. It may cause operator blindness or injury. |
Dust and chips generated by the product can affect the sliding parts of the machine tool. Make sure to remove dust and chips by using sludge collection systems, oil skimmer or other means.
Make sure to use the Brush on a machine tool that can control the rotational speed and the depth of cut. The spindle must be capable of 4.0 kW or higher power output when using the Brush with diameter of Φ60, and must be capable of 6.0 kW or higher power output when using the Brush with diameter of Φ100.
- Make sure to use a tool holder that is the right size for the shank diameter of this product.
