Product Specifications (Regular Type)

Parts and Tool Included in the Product

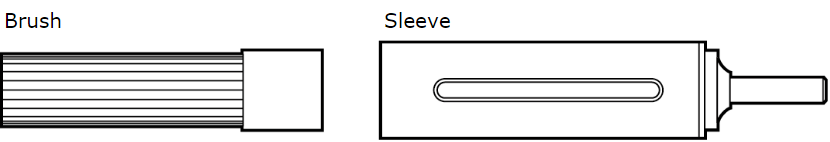

The Brush is to be used with the separately available sleeve.


Brush


Brush color
Product code
Brush diameter (mm)

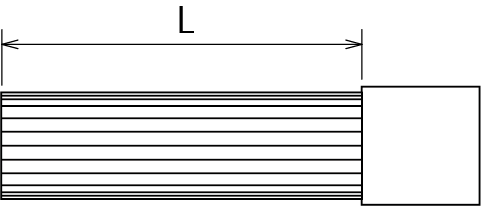

Brush length L (mm)
Matching sleeve
(Product code)


A13 (Pink)
A13-CB06M
Φ6
30
S06M
A13-CB15M
Φ15
50
S15M-P
A11 (Red)
A11-CB06M
Φ6
30
S06M
A11-CB15M
Φ15
50
S15M-P
A11-CB25M
Φ25
75
S25M
A11-CB40M
Φ40
75
S40M-SD10
A11-CB60M
Φ60
75
S60M
A11-CB100M
Φ100
75
S100M
A21 (White)
A21-CB06M
Φ6
30
S06M
A21-CB15M
Φ15
50
S15M-P
A21-CB25M
Φ25
75
S25M
A21-CB40M
Φ40
75
S40M-SD10
A21-CB60M
Φ60
75
S60M
A21-CB100M
Φ100
75
S100M
A32 (Blue)
A32-CB06M
Φ6
30
S06M
A32-CB15M
Φ15
50
S15M-P
A32-CB25M
Φ25
75
S25M
A32-CB40M
Φ40
75
S40M-SD10
A32-CB60M
Φ60
75
S60M
A32-CB100M
Φ100
75
S100M

*Bristle bundles are embedded in a single line on the periphery (except for Φ6 type).
*Brush diameter is approximate. Actual diameter varies as the tip expands with rotation.
*Brushes larger than Φ100 are available by special order.


Sleeve



Product code
Brush diameter (mm)

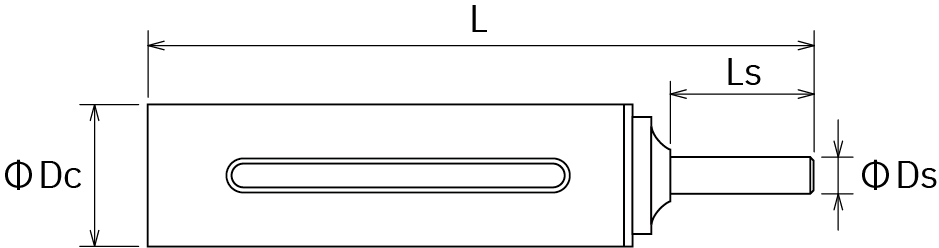

Sleeve outer diameter Dc (mm)
Shankdiameter Ds (mm)
Overall length L (mm)
Shank length
Ls(mm)
Matching Brush (Product code)
S06M
Φ6
Φ10
Φ6
70
29
A13/A11/A21/A32-CB06M
S15M-P
Φ15
Φ18.5
Φ6
90
29
A13/A11/A21/A32-CB15M
S25M
Φ25
Φ30
Φ8
140
30
A11/A21/A32-CB25M
S40M-SD10
Φ40
Φ45
Φ10
140
30
A11/A21/A32-CB40M
S60M
Φ60
Φ65
Φ12
150
35
A11/A21/A32-CB60M
S100M
Φ100
Φ110
Φ16
162
40
A11/A21/A32-CB100M

*Overall length L is sleeve length not including brush protrusion. Brush protruding length is added to the overall length when in use.
*S15M-P sleeve is made of fiber-reinforced plastic (FRP).
