| Tool | Sandpaper |
|---|---|

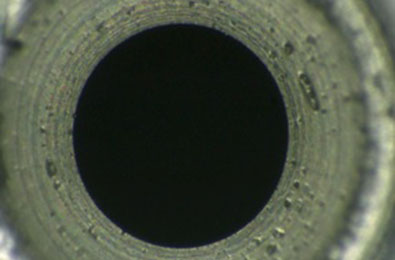

| Problem | Low production rate due to unstable surface roughness. Short tool life of sandpaper caused a cost problem. |
| Tool | XEBEC Brush for Surface (A21-CB25M)/ |
|---|---|

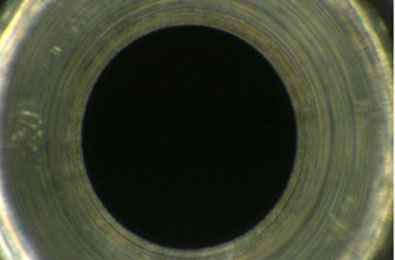

| Result | Required surface roughness realized in shorter cycle time. Reduction of labor costs corresponding to 20 hours of manual deburring work with sandpaper has been achieved. |
| Industry | Automotive |
|---|---|
| Part name | Common rail |
| Material type | S48C |
| Machining process | Grinding |
| Tool | XEBEC Brush for Surface (A21-CB25M)/ |
|---|---|
| Details of processing | Deburring the seal surface after grinding process |
| Spindle speed (min⁻¹) | 3,000 |
| Table feed (mm/min) | – |
| Depth of cut (mm) | 4 |
| Machining time (sec) | – |
