Machining Parameters (Regular Type)

Different starting machining parameters are recommended for deburring, cutter mark removal and polishing.

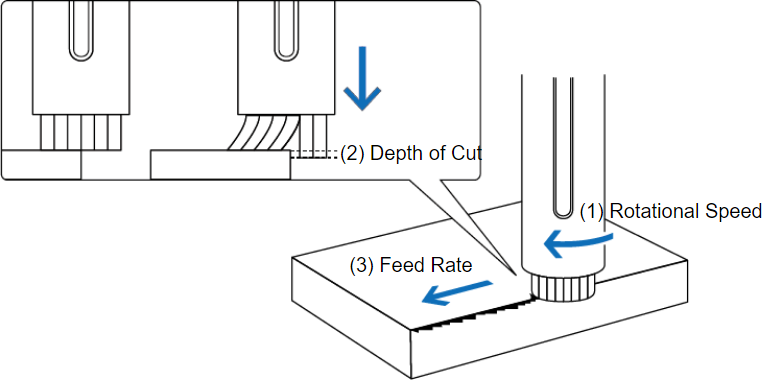

Machining parameters include (1) rotational speed (2) depth of cut and (3) feed rate.

Furthermore, different Brush protruding length is recommended for each Brush sizeand different rotational direction is recommended depending on the burr direction.

Starting Machining Parameters
Deburring
Product code
(1) Rotational speed (min-1)
(2) Depth of cut (mm)
(3) Feed rate (mm/min)
Brush protruding length (mm)
Maximum
Vertical burrs
Horizontal burrs
Burr thickness 0.05 mm
Burr thickness 0.1 mm
Maximum rotational speed (min-1)
A13-CB06M
A11-CB06M
A21-CB06M
8000
10000
0.5
0.5
4000
2500
10
A32-CB06M
8000
10000
0.3
0.3
4000
2500
10
A13-CB15M
4800
6000
1
1
4000
2500
10
A11-CB15M
A21-CB15M
A32-CB15M
4800
6000
0.5
1
4000
2500
10
A11-CB25M
A21-CB25M
A32-CB25M
4000
5000
0.5
1
4000
2500
15
A11-CB40M
A21-CB40M
A32-CB40M
2400
3000
0.5
1
4000
2500
15
A11-CB60M
A21-CB60M
A32-CB60M
1600
2000
0.5
1
4000
2500
15
A11-CB100M
A21-CB100M
A32-CB100M
960
1200
0.5
1
4000
2500
15


Cutter Mark Removal, Polishing
Product code
(1) Rotational speed (min-1)
(2) Depth of cut (mm)
(3) Feed rate (mm/min)
Brush protruding length (mm)
A13-CB06M
A11-CB06M
A21-CB06M
10000
0.3
250
10
A32-CB06M
10000
0.3
250
10
A13-CB15M
6000
0.5
450
10
A11-CB15M
A21-CB15M
A32-CB15M
6000
0.5
450
10
A11-CB25M
A21-CB25M
A32-CB25M
5000
0.5
700
10
A11-CB40M
A21-CB40M
A32-CB40M
3000
0.5
800
10
A11-CB60M
A21-CB60M
A32-CB60M
2000
0.5
850
10
A11-CB100M
A21-CB100M
A32-CB100M
1200
0.5
850
10



  • Brush protruding length affects the flexibility of the bristle (The longer the protruding length, the more flexible the bristle and the shorter the protruding length, the less flexible the bristle).
  • Do not use the Brush exceeding the maximum rotational speed and the Brush protruding length.
  • Using this product on workpieces made of plastics may cause deformation or discoloration. If either proves to be an issue, it may be possible to improve the machining result by reducing the rotational speed to 10% of the starting machining parameter.
