XEBEC Deburring Tool Path Data Format

XEBEC Deburring Tool Path data is stored in separate folders as shown below.

■First Folder Level

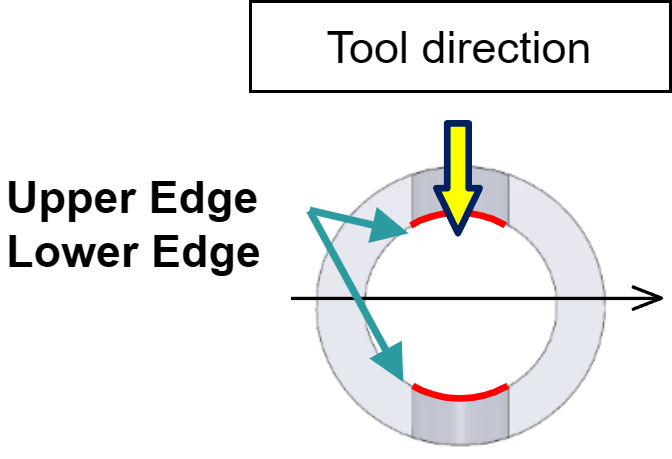

  • Contains folders for each target edge (Upper Edge / Lower Edge) to be deburred


      ▼
■Second Folder Level
  • Incremental (INC) Down Cut
  • Incremental (INC) Up Cut
  • Absolute (ABS) Up Cut


      ▼
■Third Folder Level
  • Contains a set of five XEBEC Deburring Tool Paths in .txt format, each corresponding to a specific deburring amount (edge break length)
  • Example: 01_0.10_ EdgeBreakAmount.txt
    The second number in the file name "0.10" indicates that the tool path is for deburring amount of 0.10mm


      ▼

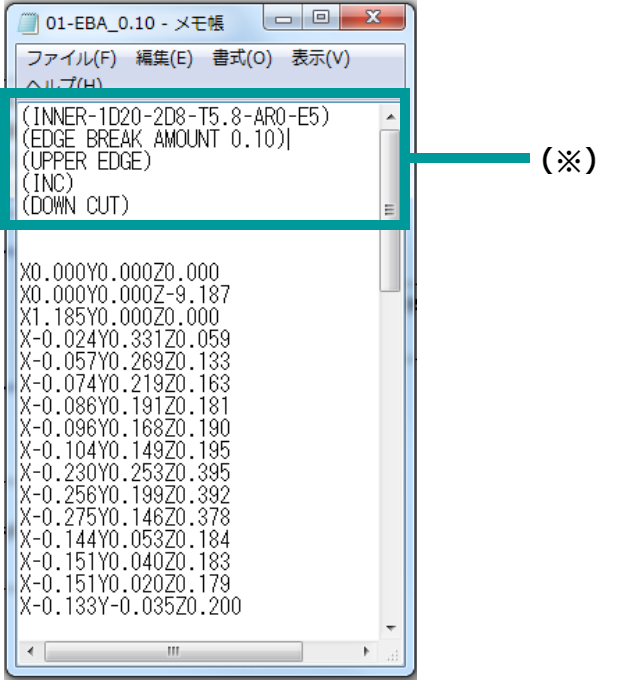

■XEBEC Deburring Tool Path

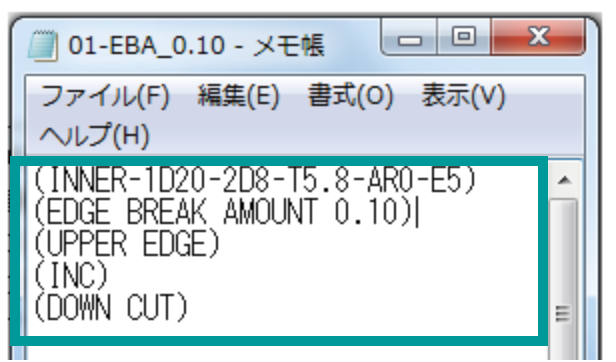

Specifications are listed at the top in parentheses ( )
Check to make sure that the Deburring Tool Path data is correct for the target edge to deburr.▶Examples of XEBEC Deburring Tool Path Specifications
Check to make sure that the Path data is correct for the target edge to deburr.

For XEBEC Deburring Tool Path for XZC-axis turn-mill machines, the data set exist only for the Upper Edge of both Outer and Inner Diameter cross holes. In that case, a total of 10 text files is provided.


Data Example

For example, a total of 20 text files are included for an Inner Diameter cross hole.

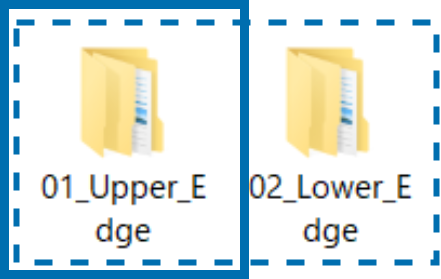

  • First Folder Level(2 Folders)
    Upper Edge and Lower Edge

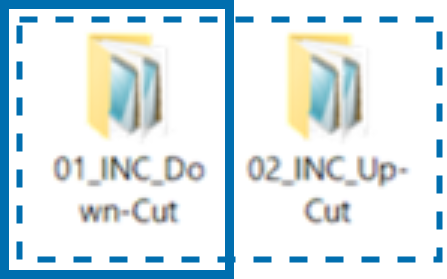

  • Second Folder Level(2 Folders)
    Incremental (INC) Up Cut / Down Cut

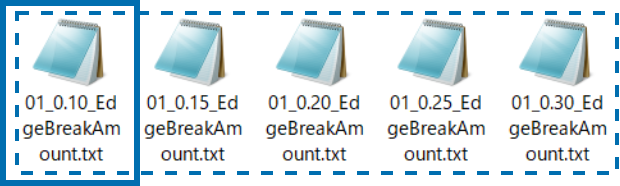

  • Third Folder Level(5 Text Files)
    Each text file corresponds to a specific deburring amount (edge break length)


Examples of XEBEC Deburring Tool Path Specifications

Example: On-center/Off-center Cross Hole XZY Machine Axis
(INNER-1D20-2D10-T5.8-E5);
(EDGE BREAK AMOUNT 0.10);
(DIAMETR);
(UPPER EDGE);
(INC);
(DOWN CUT);

Example: Orthogonal Cross Hole XZC Machine Axis
(INNER-1D20-2D10-T5.8-E5);
(EDGE BREAK AMOUNT 0.10);
(DIAMETR);
(UPPER EDGE);
(INC);
(DOWN CUT);

Specifications
Descriptions

(INNER-1D20-2D10-T5.8-E5)

INNER: Inner Edge [OUTER: Outer Edge]
1D20: Main Bore or Outer Diameter Φ20mm
2D10: Cross Hole Diameter Φ10mm
T5.8: Cutter Diameter Φ5.8mm
E5: Offset +5mm from the Main Bore or Outer Diameter Axis

(EDGE BREAK AMOUNT 0.10)

Deburring Amount 0.10mm
(DIAMETR) X-axis Controller Mode: Diameter [RADIUS: Radius]

(UPPER EDGE)

Upper Edge [LOWER: Lower Edge]

(INC)

Positioning Format: Incremental

(DOWN CUT)

Down Cut Machining [UP CUT: Up Cut Machining]

Specifications in the table above are applicable to XEBEC Deburring Tool Path for XZY turn-mill machines and XZC turn-mill machines
